How To Build A Rock Fireplace Wall: A Complete Guide?

Building a rock fireplace wall can transform your living space, adding warmth and rustic charm. At rockscapes.net, we provide the inspiration and resources you need to create a stunning focal point in your home. From selecting the perfect stones to mastering the mortar techniques, we’ll guide you through every step of the process, ensuring a beautiful and durable result. Discover incredible stone options, fireplace design tips, and expert advice.

1. What Are The Key Considerations Before Building A Rock Fireplace Wall?

Before embarking on this exciting project, there are a few key considerations to ensure a successful and safe outcome. Understanding these factors will help you plan effectively and avoid potential pitfalls.

Structural Integrity: Is your existing wall capable of supporting the weight of the rock? According to civil engineers, a standard rock fireplace wall can weigh hundreds or even thousands of pounds. Consult with a structural engineer to assess the load-bearing capacity of your wall and determine if any reinforcement is necessary.
Building Codes: Fireplaces are subject to strict building codes to ensure safety and prevent fire hazards. Check with your local building department to obtain the necessary permits and ensure your project complies with all regulations, including clearance requirements from combustible materials.
Design and Aesthetics: What style of rock fireplace wall do you envision? Consider the existing décor of your home and choose a rock type and design that complements your aesthetic. Rockscapes.net offers a wide array of design ideas and stone options to inspire your creativity.
Budget: Rock fireplace walls can range in cost depending on the type of stone, the size of the wall, and whether you hire a professional mason. Develop a realistic budget that accounts for all materials, tools, and labor costs.

2. What Tools And Materials Do You Need To Build A Rock Fireplace Wall?

Gathering the right tools and materials is essential for a smooth and efficient construction process. Having everything on hand before you start will save you time and frustration.

Tool/Material	Description
Mortar Mixer	For effectively mixing mortar.
Pointing Tool	To press and work the mortar flat.
Stiff Craft Brush	To smooth the mortar.
Grouting & Concrete Sponge	To wipe off the haze near the mortar.
Wire Brush	For smoothing the mortar.
White Large Stone and Tile Mortar	To fill cracks in the stone.
Mortar Piping Bag	To dispense the mortar.
Corded Drill	To attach the mortar mixer.
Buckets	To mix the mortar.
Quikrete Concrete Dye	To add a custom color to your mortar.

Essential Tools:

Mortar Mixer: A heavy-duty mixer is crucial for preparing the mortar to the right consistency.
Trowels: Different sizes and shapes of trowels are needed for applying and shaping the mortar.
Stone Hammer and Chisels: These are used for shaping and trimming the stones to fit properly.
Level: Ensuring your rock fireplace wall is level is critical for both aesthetics and structural integrity.
Safety Glasses and Gloves: Protect your eyes and hands from flying debris and harsh materials.

Essential Materials:

Rocks: The star of the show! Choose your desired type of rock based on color, texture, and size.
Mortar: A high-quality mortar mix is essential for binding the stones together.
Metal Lath: This provides a surface for the mortar to adhere to, especially when working on a framed wall.
Fasteners: Screws or nails are needed to attach the metal lath to the wall.

3. What Are The Different Types Of Rocks Suitable For A Fireplace Wall?

The type of rock you choose will significantly impact the overall look and feel of your fireplace wall. Each type of rock has unique characteristics that can complement different architectural styles.

Fieldstone: This is a classic choice for rock fireplace walls, offering a rustic and natural look. Fieldstone typically consists of a variety of shapes, sizes, and colors, creating a visually interesting and textured surface. It’s commonly found in the Northeast and Midwest regions of the United States.
River Rock: Smooth and rounded, river rocks bring a sense of tranquility and elegance to a fireplace wall. They are typically smaller in size and come in a range of colors, from light tan to dark gray. River rock is often used in contemporary or minimalist designs.
Ledgestone: This type of stone is characterized by its long, thin, and rectangular shape. Ledgestone is easy to install and creates a clean, modern look. It’s available in a variety of colors and textures, making it a versatile choice for any home.
Stacked Stone: Similar to ledgestone, stacked stone consists of individual stones that are arranged in a stacked pattern. However, stacked stone often has more texture and variation in color, adding depth and visual interest to the fireplace wall.

Choosing the right stone can be daunting, but Rockscapes.net offers an extensive catalog of stones, complete with detailed descriptions and high-quality images, to help you make an informed decision.

4. How Do You Prepare The Wall Surface Before Installation?

Proper preparation of the wall surface is crucial for ensuring the longevity and stability of your rock fireplace wall. This step involves creating a clean, solid surface for the mortar to adhere to.

Clean the Wall: Remove any dust, dirt, grease, or loose paint from the wall surface. A pressure washer or a wire brush can be used for this purpose.
Install Metal Lath: Attach metal lath to the wall using screws or nails. The metal lath provides a surface for the mortar to grip onto, especially if you’re working with a framed wall. Overlap the edges of the metal lath by at least 2 inches.
Apply a Scratch Coat: Mix a batch of mortar and apply a thin layer, known as a scratch coat, over the metal lath. Use a notched trowel to create grooves in the scratch coat, which will provide additional grip for the next layer of mortar. Allow the scratch coat to cure for at least 24 hours.

5. What Is The Best Mortar Mixing Technique For Rock Fireplace Walls?

Mixing the mortar correctly is essential for creating a strong and durable bond between the stones. The ideal mortar consistency should be similar to that of thick peanut butter.

Use a Mortar Mixer: A mortar mixer will ensure that the ingredients are thoroughly combined.
Add Water Gradually: Add water to the dry mortar mix in small increments, mixing continuously until you achieve the desired consistency.
Avoid Overwatering: Adding too much water will weaken the mortar and make it difficult to work with.
Mix in Batches: Mix only as much mortar as you can use within an hour or two, as it will start to harden over time.

According to experts at Arizona State University’s School of Earth and Space Exploration, the quality of mortar significantly impacts the longevity of stone structures.

6. How To Properly Apply Mortar And Set The Rocks?

Applying the mortar and setting the rocks is where your rock fireplace wall starts to take shape. Patience and attention to detail are key in this step.

Apply Mortar to the Stone: Using a trowel, apply a generous layer of mortar to the back of each stone. Make sure to cover the entire surface that will be in contact with the wall.
Set the Stone: Press the stone firmly against the wall, wiggling it slightly to ensure good contact with the mortar.
Maintain Consistent Spacing: Use shims or spacers to maintain consistent spacing between the stones.
Work from the Bottom Up: Start at the bottom of the wall and work your way up, allowing the mortar to set slightly before adding the next row of stones.
Remove Excess Mortar: Use a small trowel or putty knife to remove any excess mortar that squeezes out between the stones.

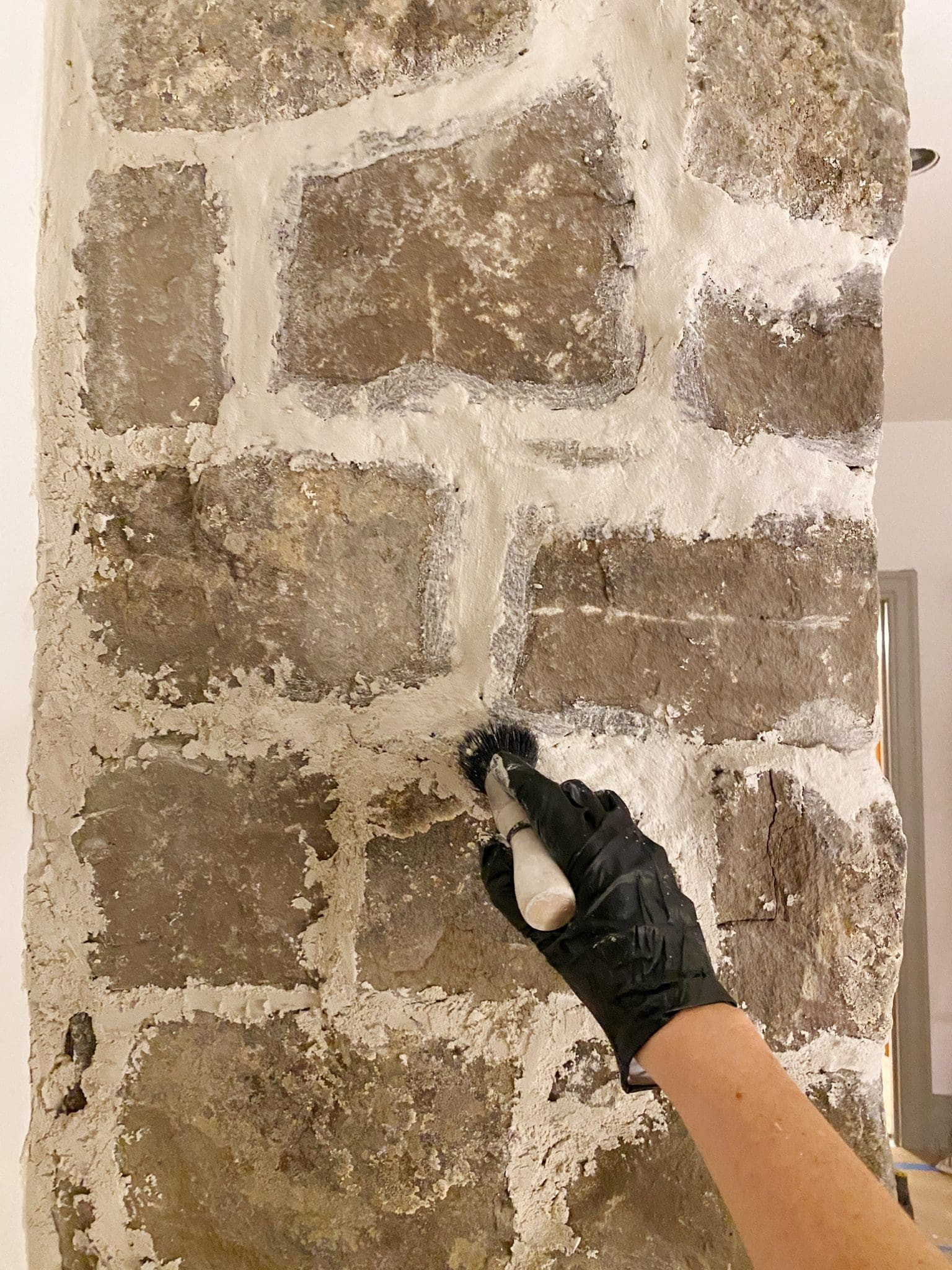

Applying mortar to stone for a fireplace wall

7. How Do You Achieve Different Aesthetic Styles With Mortar Techniques?

The way you apply and finish the mortar can dramatically change the appearance of your rock fireplace wall. Experiment with different techniques to achieve the desired aesthetic.

Flush Mortar Joint: This technique involves filling the joints between the stones completely flush with the surface. It creates a clean and modern look.
Recessed Mortar Joint: In this technique, the mortar is recessed slightly below the surface of the stones, creating a more rustic and textured appearance.
Over-Grouted Stone Fireplaces: Over-grouting involves applying more mortar than usual, allowing it to spill onto the front of the stones. This creates a softer, cottage-like look, as seen in many inspiration photos.
Tuckpointing: This is a decorative technique where a thin line of colored mortar is applied to the surface of the joint, creating a visually striking effect.

As demonstrated at rockscapes.net, the possibilities are endless.

8. How To Clean And Finish The Rock Fireplace Wall?

Once the mortar has fully cured, it’s time to clean and finish your rock fireplace wall. This step will enhance the natural beauty of the stones and ensure a long-lasting finish.

Remove Mortar Haze: Use a scrubby sponge and water to wipe off any mortar haze that may have accumulated on the surface of the stones. You can add some coarse salt or sugar to the water for extra cleaning power.
Clean the Stones: Use a mild detergent and water to clean the stones. A soft-bristled brush can be used to remove any stubborn dirt or stains.
Apply a Stone Sealer: Applying a stone sealer will protect the stones from moisture and staining. Choose a sealer that is specifically designed for the type of stone you have used.
Admire Your Work: Step back and admire your beautiful new rock fireplace wall!

Cleaning a rock fireplace wall with a scrubby sponge

9. What Are Some Common Mistakes To Avoid When Building A Rock Fireplace Wall?

Even experienced DIYers can make mistakes when building a rock fireplace wall. Being aware of these common pitfalls can help you avoid them.

Insufficient Wall Support: Failing to ensure adequate wall support can lead to structural failure and potential safety hazards.
Improper Mortar Mixing: Using the wrong mortar consistency can compromise the strength and durability of the wall.
Neglecting Building Codes: Ignoring building codes can result in costly fines and the need to redo the project.
Poor Stone Selection: Choosing the wrong type of stone can clash with the overall aesthetic of your home.

10. How To Maintain And Care For Your Rock Fireplace Wall?

Proper maintenance and care will keep your rock fireplace wall looking its best for years to come.

Regular Cleaning: Clean the stones regularly with a mild detergent and water to remove dust and dirt.
Inspect for Cracks: Inspect the mortar joints regularly for cracks or damage. Repair any cracks promptly to prevent water from seeping behind the stones.
Reapply Sealer: Reapply stone sealer every few years to protect the stones from moisture and staining.
Avoid Harsh Chemicals: Avoid using harsh chemicals or abrasive cleaners, as they can damage the stones.

By following these tips, you can ensure that your rock fireplace wall remains a stunning focal point in your home for generations to come. Rockscapes.net is committed to providing you with the knowledge and resources you need to create and maintain a beautiful and enduring rock landscape.

11. What Are Some Design Ideas For A Rock Fireplace Wall?

Creating a unique rock fireplace wall involves combining various design elements to match your personal style. Here are some ideas to spark your imagination:

Rustic Charm: Use fieldstone with a recessed mortar joint for a traditional, rustic look. Incorporate a reclaimed wood mantle for added warmth.
Modern Elegance: Opt for ledgestone or stacked stone with a flush mortar joint for a sleek, contemporary design. Consider adding a stainless steel or glass fireplace insert for a modern touch.
Natural Beauty: Use river rock to create a serene and organic fireplace wall. Incorporate plants and other natural elements to enhance the natural beauty of the stone.
Statement Piece: Create a bold statement with a unique stone pattern or color combination. Consider using a contrasting mortar color to highlight the texture of the stones.

12. How Can You Incorporate A Rock Fireplace Wall Into Different Home Styles?

A rock fireplace wall can seamlessly integrate into various home styles, adding character and sophistication. Here’s how:

Craftsman: Choose earth-toned fieldstone or ledgestone to complement the natural materials and handcrafted details of a Craftsman home.
Mid-Century Modern: Opt for sleek ledgestone or river rock with a minimalist design to enhance the clean lines and geometric shapes of a Mid-Century Modern home.
Farmhouse: Use whitewashed fieldstone or stacked stone to create a cozy and inviting farmhouse feel. Incorporate a vintage-inspired mantle for added charm.
Contemporary: Choose a bold stone pattern or color combination with a flush mortar joint for a modern and sophisticated look.

13. What Safety Precautions Should You Take When Building A Rock Fireplace Wall?

Safety should always be a top priority when building a rock fireplace wall.

Wear Safety Glasses and Gloves: Protect your eyes and hands from flying debris and harsh materials.
Use Proper Lifting Techniques: Lift heavy stones with your legs, not your back, to avoid injury.
Work in a Well-Ventilated Area: When mixing mortar, work in a well-ventilated area to avoid inhaling harmful dust and fumes.
Follow Manufacturer’s Instructions: Always follow the manufacturer’s instructions for all materials and tools.
Hire a Professional: If you are not comfortable with any aspect of the project, hire a professional mason.

14. How To Choose The Right Contractor For Your Rock Fireplace Wall Project?

Hiring a qualified contractor can ensure that your rock fireplace wall is built safely and to your specifications.

Check References: Ask for references from previous clients and contact them to inquire about their experience.
Review Their Portfolio: Examine their portfolio of completed projects to assess their skills and style.
Get Multiple Bids: Obtain bids from multiple contractors to compare prices and services.
Verify Licensing and Insurance: Ensure that the contractor is licensed and insured to protect yourself from liability.
Read the Contract Carefully: Review the contract carefully before signing, paying close attention to the scope of work, payment schedule, and warranty.

15. What Are The Latest Trends In Rock Fireplace Wall Design?

Staying up-to-date with the latest trends can inspire your design choices and ensure a stylish and modern look.

Thin Stone Veneer: This lightweight and easy-to-install material is becoming increasingly popular for rock fireplace walls.
Geometric Patterns: Incorporating geometric patterns into the stone arrangement adds a contemporary touch.
Mixed Materials: Combining rock with other materials, such as wood, metal, or glass, creates a unique and visually interesting design.
Vertical Fireplace Walls: Extending the rock fireplace wall to the ceiling creates a dramatic and eye-catching focal point.

16. How Does Climate Affect The Choice Of Stone For A Fireplace Wall?

Climate plays a crucial role in selecting the right type of stone for your fireplace wall, especially for exterior applications.

Freeze-Thaw Resistance: In colder climates, choose stones that are resistant to freeze-thaw cycles, such as granite or quartzite.
Moisture Resistance: In humid climates, opt for stones that are less porous and resistant to moisture absorption, such as slate or flagstone.
UV Resistance: In sunny climates, select stones that are resistant to fading and discoloration from prolonged exposure to sunlight.
Local Availability: Consider using locally sourced stones, which are typically better suited to the regional climate.

17. Can You Build A Rock Fireplace Wall Outdoors?

Yes, you can build a rock fireplace wall outdoors, but there are additional considerations to keep in mind.

Weather Resistance: Choose stones and mortar that are specifically designed for outdoor use and can withstand the elements.
Drainage: Ensure proper drainage to prevent water from accumulating behind the wall.
Footing: Build a solid footing to support the weight of the wall and prevent settling.
Local Regulations: Check with your local building department for any regulations or restrictions on outdoor fireplaces.

18. How Do You Add A Mantle To A Rock Fireplace Wall?

Adding a mantle to your rock fireplace wall can enhance its aesthetic appeal and provide a functional surface for displaying decorative items.

Choose a Mantle Material: Select a mantle material that complements the style of your fireplace wall. Popular choices include reclaimed wood, concrete, and limestone.
Determine the Mantle Height: Position the mantle at a comfortable height, typically 4 to 5 feet above the floor.
Install Support Brackets: Attach support brackets to the wall studs to provide a secure base for the mantle.
Attach the Mantle: Secure the mantle to the support brackets using screws or construction adhesive.
Conceal the Fasteners: Conceal the fasteners with wood filler or decorative caps.

A rock fireplace wall with a wood mantle

19. What Are Some Budget-Friendly Options For Building A Rock Fireplace Wall?

Building a rock fireplace wall doesn’t have to break the bank. Here are some budget-friendly options:

Use Faux Stone: Faux stone veneer is a cost-effective alternative to natural stone.
Source Local Stone: Buying stone directly from a local quarry or supplier can save you money.
DIY Installation: Installing the rock fireplace wall yourself can save on labor costs.
Repurpose Materials: Repurpose old bricks, stones, or concrete blocks to create a unique and affordable fireplace wall.

20. How To Light A Rock Fireplace Wall Effectively?

Effective lighting can enhance the beauty and ambiance of your rock fireplace wall.

Recessed Lighting: Install recessed lighting above the fireplace to highlight the texture and color of the stones.
Spotlights: Use spotlights to create dramatic shadows and highlight specific features of the fireplace wall.
Accent Lighting: Place accent lights on the mantle or surrounding shelves to add warmth and ambiance.
Fireplace Inserts: Choose a fireplace insert with built-in lighting to illuminate the flames and create a cozy atmosphere.

21. How Do You Integrate Technology Into A Rock Fireplace Wall?

Integrating technology into your rock fireplace wall can enhance its functionality and convenience.

Conceal Wiring: Conceal wiring for your TV and other electronic devices behind the stone veneer.
Install a Sound System: Incorporate a sound system into the fireplace wall for a seamless audio experience.
Smart Home Integration: Connect your fireplace to your smart home system for remote control and automation.
Electric Fireplace Insert: Choose an electric fireplace insert with adjustable flame settings and remote control.

22. How Do You Deal With Uneven Or Irregular Stones?

Working with uneven or irregular stones can add character and visual interest to your fireplace wall.

Dry-Fit the Stones: Before applying mortar, dry-fit the stones to determine the best arrangement.
Use Shims: Use shims to level the stones and maintain consistent spacing.
Embrace the Imperfections: Embrace the natural imperfections of the stones to create a unique and rustic look.
Trim the Stones: Use a stone hammer and chisels to trim the stones to fit properly.

23. How To Protect Your Rock Fireplace Wall From Heat Damage?

Protecting your rock fireplace wall from heat damage is crucial for ensuring its longevity and safety.

Follow Clearance Requirements: Adhere to the manufacturer’s clearance requirements for the fireplace insert.
Use Non-Combustible Materials: Use non-combustible materials, such as metal or cement board, behind the stone veneer.
Install a Heat Shield: Install a heat shield to protect the surrounding walls from excessive heat.
Regular Inspections: Inspect the fireplace and chimney regularly for signs of damage or wear.

24. How Do You Address Moisture Issues With A Rock Fireplace Wall?

Moisture issues can lead to damage and deterioration of your rock fireplace wall.

Ensure Proper Ventilation: Ensure proper ventilation to prevent moisture from accumulating behind the wall.
Apply a Waterproofing Membrane: Apply a waterproofing membrane to the wall before installing the stone veneer.
Use Moisture-Resistant Materials: Use moisture-resistant materials, such as treated lumber and waterproof mortar.
Address Leaks Promptly: Address any leaks or water damage promptly to prevent further deterioration.

25. What Are The Environmental Benefits Of Using Natural Stone?

Using natural stone for your fireplace wall offers several environmental benefits.

Sustainable Material: Natural stone is a sustainable material that is quarried from the earth.
Durable and Long-Lasting: Natural stone is a durable and long-lasting material that requires minimal maintenance.
Energy Efficient: Natural stone can help regulate the temperature of your home, reducing energy consumption.
Recyclable: Natural stone can be recycled and reused in other construction projects.

Building a rock fireplace wall is an investment that adds value, beauty, and warmth to your home. By following these tips and techniques, you can create a stunning focal point that you and your family will enjoy for years to come.

26. How Can You Customize Your Rock Fireplace Wall With Unique Stone Patterns?

Customizing your rock fireplace wall with unique stone patterns can add a personal touch and create a distinctive look.

Random Pattern: A random pattern involves arranging stones of various sizes and shapes in a seemingly haphazard manner. This creates a natural and organic look.
Horizontal Pattern: A horizontal pattern involves arranging stones in horizontal rows, with each row slightly offset from the row below. This creates a clean and modern look.
Vertical Pattern: A vertical pattern involves arranging stones in vertical columns, with each column slightly offset from the column next to it. This creates a dramatic and eye-catching look.
Geometric Pattern: A geometric pattern involves arranging stones in a repeating geometric shape, such as a triangle, square, or hexagon. This creates a contemporary and artistic look.

27. What Are The Best Types Of Fireplace Inserts For A Rock Fireplace Wall?

Choosing the right fireplace insert can enhance the functionality and aesthetic appeal of your rock fireplace wall.

Wood-Burning Inserts: Wood-burning inserts provide a traditional and authentic fireplace experience.
Gas Inserts: Gas inserts offer convenience and ease of use.
Electric Inserts: Electric inserts are a safe and energy-efficient option.
Pellet Inserts: Pellet inserts burn wood pellets, which are a renewable and sustainable fuel source.

28. How To Properly Seal And Protect Your Rock Fireplace Wall From Stains?

Proper sealing and protection can prevent stains and maintain the beauty of your rock fireplace wall.

Choose the Right Sealer: Select a sealer that is specifically designed for the type of stone you have used.
Clean the Stones: Clean the stones thoroughly before applying the sealer.
Apply the Sealer Evenly: Apply the sealer evenly using a brush, roller, or sprayer.
Allow the Sealer to Dry: Allow the sealer to dry completely before using the fireplace.
Reapply the Sealer: Reapply the sealer every few years to maintain its protective properties.

29. What Are Some Common Problems Encountered During Rock Fireplace Wall Construction And How To Solve Them?

Being prepared for common problems can help you avoid delays and frustration during your rock fireplace wall construction project.

Mortar Cracking: Mortar cracking can be caused by improper mixing, excessive drying, or settling of the foundation. Repair cracks promptly with a flexible patching compound.
Stone Discoloration: Stone discoloration can be caused by moisture, staining, or mineral deposits. Clean the stones with a mild detergent and water, and apply a stone sealer to prevent future discoloration.
Loose Stones: Loose stones can be caused by improper mortar adhesion or settling of the foundation. Reattach loose stones with fresh mortar.
Water Leaks: Water leaks can be caused by cracks in the chimney, damaged flashing, or porous stones. Repair leaks promptly to prevent further damage.

30. How Can You Add Unique Textural Elements To Your Rock Fireplace Wall?

Adding unique textural elements can enhance the visual interest and tactile appeal of your rock fireplace wall.

Mix Stone Types: Combine different types of stones to create a varied and textured surface.
Incorporate Natural Elements: Incorporate natural elements, such as driftwood, branches, or moss, into the stone arrangement.
Use Different Mortar Techniques: Use different mortar techniques, such as recessed joints or over-grouting, to create varying levels of texture.
Add Dimensional Features: Add dimensional features, such as shelves, niches, or corbels, to create depth and visual interest.

At Rockscapes.net, we understand that building a rock fireplace wall is a significant undertaking. That’s why we’re committed to providing you with comprehensive information, high-quality materials, and expert support every step of the way.

Ready to start your rock fireplace wall project? Visit rockscapes.net today to explore our extensive selection of stones, design ideas, and expert advice. Let us help you create the fireplace of your dreams!

Address: 1151 S Forest Ave, Tempe, AZ 85281, United States. Phone: +1 (480) 965-9011. Website: rockscapes.net.

FAQ: Building Your Rock Fireplace Wall

1. What kind of rock is best for a fireplace wall?

The best kind of rock depends on your style and budget, but fieldstone, river rock, and ledgestone are all popular choices for a fireplace wall. Fieldstone offers a rustic look, river rock brings tranquility, and ledgestone provides a modern feel. Consider your home’s aesthetic and climate when making your selection.

2. How do I prepare my wall before adding a rock veneer?

Preparing the wall involves cleaning the surface thoroughly, attaching metal lath for mortar adhesion, and applying a scratch coat. This ensures a strong base for your rock veneer, similar to prepping a canvas before painting.

3. What type of mortar should I use for a rock fireplace wall?

You should use a high-quality mortar mix designed for stone and tile, it is crucial for binding the stones together. The mortar’s consistency should be similar to thick peanut butter, ensuring it holds the rocks firmly in place.

4. How much does it cost to build a rock fireplace wall?

The cost varies, but you can save money by using faux stone or sourcing local materials. The cost to build a rock fireplace can range from a few hundred to several thousand dollars, depending on the materials and whether you hire a professional.

5. How can I ensure my rock fireplace wall is structurally sound?

Ensure your wall is structurally sound by consulting with a structural engineer to assess the load-bearing capacity and reinforcing the wall if necessary. Safety first!

6. How do I clean a rock fireplace wall?

Clean your rock fireplace wall with a mild detergent and water. A soft-bristled brush can help remove stubborn dirt, keeping your fireplace looking fresh.

7. Can I build a rock fireplace wall myself, or should I hire a professional?

While DIY is possible, hiring a professional ensures building codes are met and the job is done safely and correctly. Hiring a professional mason can ensure the fireplace is built safely and efficiently.

8. What are the latest design trends for rock fireplace walls?

The latest trends include thin stone veneer, geometric patterns, and mixing rock with other materials like wood or metal. These trends offer modern and unique design options.

9. How do I add a mantle to my rock fireplace wall?

Adding a mantle involves choosing a material that complements the style of your fireplace, installing support brackets, and securing the mantle. This adds both functionality and aesthetic appeal.

10. How do I protect my rock fireplace wall from heat damage?

Protect your fireplace wall by following clearance requirements, using non-combustible materials, and installing a heat shield. Regular inspections can also help prevent heat damage.
